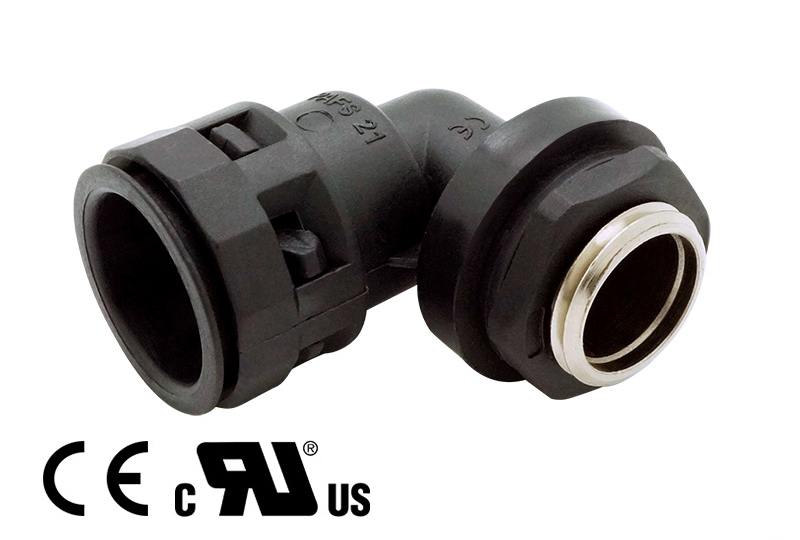

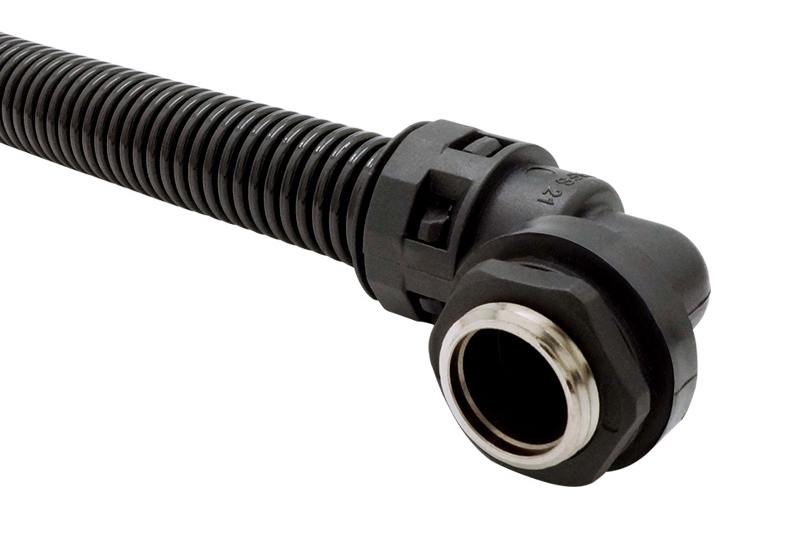

參數：
材質：PA66 (UL94 V-0), PA6 (UL94 V-2)
螺牙選擇：NPT, M, PG & G
溫度范圍：-20℃~+105℃
IP 等級：IP 66
阻燃等級：UL94 V-0, UL94 V-2
抗 UV：有
環保：符合 RoHs, 不含鹵素
認證：cURus (E491228), CE
備注：G，PG, M牙無UL認證。
規格表：
M 螺紋
| 公稱尺寸 | 公稱尺寸 | M 螺紋 | 產品型號 | 每箱數量 (pcs) | 每箱重量 (kg) |
| 10 | 1/4 | M12 | FN0410-M12-V0 | 560 | 11.6 |
| 13 | 5/16 | M16 | FN0413-M16-V0 | 300 | 11.9 |
| 16 | 3/8 | M6 | FN0416-M16-V0 | 210 | 8.5 |
| 21 | 1/2 | M20 | FN0421-M20-V0 | 180 | 7.8 |
| 28 | 3/4 | M25 | FN0428-M25-V0 | 120 | 8.3 |
| 34 | 1 | M32 | FN0434-M32-V0 | 75 | 8.0 |
| 42 | 1-1/4 | M40 | FN0442-M40-V0 | 36 | 5.9 |
| 54 | 2 | M63 | FN0454-M63-V0 | 24 | 6.8 |
PG 螺紋
| 公稱尺寸 | 公稱尺寸 | PG 螺紋 | 產品型號 | 每箱數量 (pcs) | 每箱重量 (kg) |
| 10 | 1/4 | PG7 | FN0410-PG7-V0 | 560 | 11.6 |
| 13 | 5/16 | PG9 | FN0413-PG9-V0 | 300 | 11.9 |
| 16 | 3/8 | PG11 | FN0416-PG11-V0 | 210 | 8.5 |
| 21 | 1/2 | PG16 | FN0421-PG16-V0 | 180 | 7.8 |
| 28 | 3/4 | PG21 | FN0428-PG21-V0 | 120 | 8.3 |
| 34 | 1 | PG29 | FN0434-PG29-V0 | 75 | 8.0 |
| 42 | 1-1/4 | PG36 | FN0442-PG36-V0 | 36 | 5.9 |
| 54 | 2 | PG48 | FN0454-PG48-V0 | 24 | 6.8 |
NPT 螺紋
| 公稱尺寸 | 公稱尺寸 | NPT 螺紋 | 產品型號 | 每箱數量 (pcs) | 每箱重量 (kg) |
| 10 | 1/4 | NPT 1/4" | FN0410-NPT1/4-V0 | 560 | 11.6 |
| 13 | 5/16 | NPT 1/2" | FN0413-NPT1/2-V0 | 300 | 11.9 |
| 16 | 3/8 | NPT 1/2" | FN0416-NPT1/2-V0 | 210 | 8.5 |
| 21 | 1/2 | NPT 1/2" | FN0421-NPT1/2-V0 | 180 | 7.8 |
| 28 | 3/4 | NPT 3/4" | FN0428-NPT3/4-V0 | 120 | 8.3 |
| 34 | 1 | NPT 1" | FN0434-NPT1-V0 | 75 | 8.0 |
| 42 | 1-1/4 | NPT 1-1/4" | FN0442-NPT1-1/4-V0 | 36 | 5.9 |
| 54 | 2 | NPT 2" | FN0454-NPT2-V0 | 24 | 6.8 |
G 螺紋
| 公稱尺寸 | 公稱尺寸 | G 螺紋 | 產品型號 | 每箱數量 (pcs) | 每箱重量 (kg) |
| 10 | 1/4 | G 1/4" | FN0410-G1/4-V0 | 560 | 11.6 |
| 13 | 5/16 | G 1/2" | FN0413-G1/2-V0 | 300 | 11.9 |
| 16 | 3/8 | G 1/2" | FN0416-G1/2-V0 | 210 | 8.5 |
| 21 | 1/2 | G 1/2" | FN0421-G1/2-V0 | 180 | 7.8 |
| 28 | 3/4 | G 3/4" | FN0428-G3/4-V0 | 120 | 8.3 |
| 34 | 1 | G 1" | FN0434-G1-V0 | 75 | 8.0 |
| 42 | 1-1/4 | G 1-1/4" | FN0442-G1-1/4-V0 | 36 | 5.9 |
| 54 | 2 | G 2" | FN0454-G2-V0 | 24 | 6.8 |
